Casa /Produtos/Interruptor de motor/Chtai CTM1-630 400A to 630A mccb main miniature circuit breaker motorized hot sale mccb 500A 3p CTM1-630L

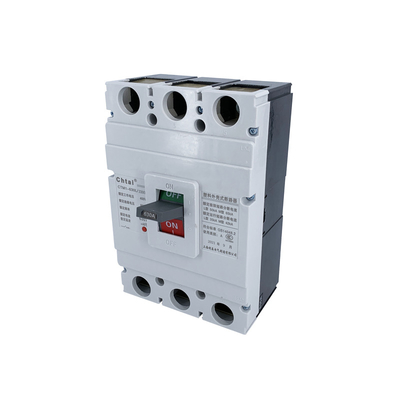

Chtai CTM1-630 400A to 630A mccb main miniature circuit breaker motorized hot sale mccb 500A 3p CTM1-630L

1.0 Pieces
MOQ
Chtai CTM1-630 400A to 630A mccb main miniature circuit breaker motorized hot sale mccb 500A 3p CTM1-630L
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: CTM1-630L
Rated Voltage: 800V
BCD Curve: C
poles: 2p 3p 4p
Rated current In(A): 400a
Rated insulation voltage: 800v
Rated voltage(Ue): 690v and below
Type: C/L/M/H, Mini
Working Temperature: -5℃ to 40℃
protection: overload,short circuit, undervoltage protection
Standard: IEC60947-2,GB14048.2
Certificate: CCC CE
OEM ODM: avaiable
Rated Frequency: 50/60hz
Poles Number: 3p
Informação básica
Certificação: CCC CE
Model Number: CTM1-630L
Condições de Pagamento e Envio
Supply Ability: 5000 Piece/Pieces per Day
Descrição de produto
Products Description

Range of application

CTM1 series plastic case circuit breaker,advanced structure,reliable performance, quick response, sensitive induction, shell and components are made of impact resistance and high flame retardant materials, long service life.Applied in the power system of AC50(60)Hz,rated insulation voltage 800V rated voltage 690V and below, rated current 1250A and below as the transfer not frequently.The circuit breaker has the protection devices of over load, short circuit and under voltage,it can protect the circuit and power equipment from broken. This mccb can be sorted to C type (basic),L type (standard),M type (high breaking), H type(higher bre-
aking) according to its rated limit short circuit breaking capacity.It is the ideal product for application in land and ship.
The product conforms to IEC60947-2,GB14048.2 and other standards.
Product Paramenters
Name
CTM1
Number
CTM1-630
Poles
2P,3P,4P
Rated current(In)
400A，500A，630A
Rated Insulation Voltage(V)
800V
Rated voltage(Ue)
690V and below
Rated frequency
50Hz
Type
C/L/M/H
Working Temperature
-5℃ to 40℃
Standard
IEC60947-2,GB14048.2
protection:
overload，short circuit， undervoltage protection
Certificate
CCC CE
Guarantee
2YEARS
OEM ODM
avaiable
Protection Features:Thermal Release with inverse-time characteristic
Rated Current(A)
1.05In(cool station)     no breaking time(h)
40°C for land/45°C for ship 1.30In  (thermal station) breaking time(h)
Electromagnetic release breaking current(A)
10
>=1
<1
10In±20%
63
>=2
<2
100
>=2
<2
5In±20%&10In±20%
Details Images
Moulded Case AC Circuit Breaker
Moulded Case Earth Leakage Circuit Breaker
Molded case DC circuit breaker
Model
Poles Rated
L1
L2
L3
L4
CTM1-63
3
76
135
91
71
4
103
98
80
CTM1-125
2
65
150
86
68
3
91
4
120
CTM1-250
2
75
165
110
87
3
105
4
140
CTM1-400
3
150
257
150
107
4
198
CTM1L-630
3
182
270.5
158
112
4
240
CTM1L-800
3
210
280
158
115
4
280
Application
Certifications
Company Profile
Wenzhou Xinghe Import & Export Co.,Ltd. is a high-tech enterprise that engaged indesigning,developing,manufacturing and selling low-voltage air circuit breaker and socket,Surge protective device and so on. Our products have proven popular all over the world.
Xinghe Company Is a leading supplier of electrical accessories in China.We have our own factory and raw material production base in Zhejiang province. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons,switches, modular sockets,industrial plugs and sockets, and multi-meters.We have a wide range of products, good quality,reasonable price and novel style, at the same time, we can provide fast delivery and efficient after-sales service.
In the fierce market competition, the company adhere to the tenet that "brand is benefit", providing our customers with quality products and enthusiastic service.
We sincerely welcome customers from home and abroad to cooperate with and create a bright future together.
FAQ

Q1:When can I receive quotation and detail information after send the enquiry?

A: Reply will be sent in 24hours.

Q2: Do you provide samples ? is it free or extra ?

A: Yes,We are honored to provide you with samples of what you need before place order on free but do not pay the cost of freight.

Q3: How can I get some samples?

A: Please contact us and leave detailed contact information, we promise to keep your information confidential.

Q4:What's the delivery time?

A: Samples cost 5-7 days. Bulk order usually takes 7-15days after confirming the payment,but the specific time shall be determined according to the order quantity.

Q5:Do you accept OEM business?

A:Yes, we do.

Q6:Do you have a warranty policy?

A:Our products are warranty for two years and full lifespan aftersales service.
